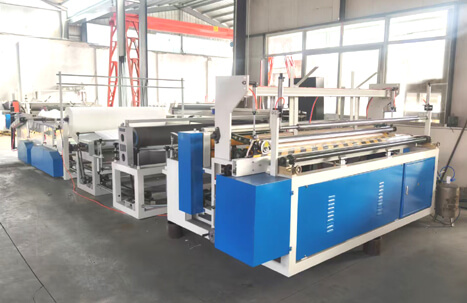

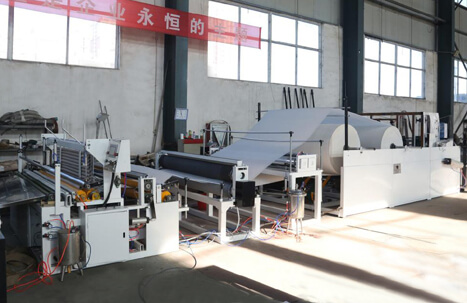

XTK2200 Full-automatic high-speed glue kitchen towel rewinding, perforating, embossing machine, which can produce both glue kitchen towel tissue paper and toilet paper roll. The machine is composed of parent roll stand, press and feeding paper device, embossing device, glue device, paper feeding device, perforation device, rolling device, electrical control system and cutting device.

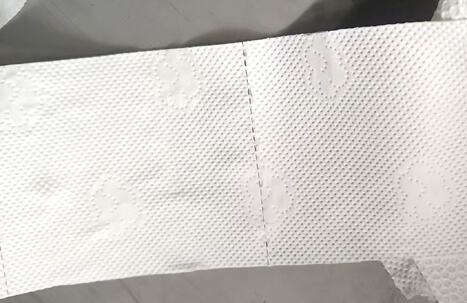

1.Surface of finished kitchen towel is clear and tension is even;
2.Structure of the machine is compact;
3.It is easy to operation;
4.The specification of final product is adjustable;
| Width of raw material | 2200mm |
| Diameter of raw material | 1300mm(max: 1500mm) |
| Inner diameter of raw material core | 76.2mm |
| Parameter setting | Human Machine Interface |
| Programming controller | PLC (automatic stop when paper break, feeding tube automatically, automatic dropping core, automatic diameter control, automatic trimming, glue spraying and sealing) |
| Embossing system | Steel roller to wool paper roller; Steel roller to rubber roller |
| lamination system | Included |
| Color printing | Optional |
| Gluing device | Point-to-point, glue device |
| working speed | 200m/min |
| Diameter of finished roll | 90-150mm |
| diameter of finished paper core | 30-60mm |
| Automatic core feeding | available with core or coreless |
| Perforating system | 2 knifes, perforating distance: 170-260mm |
| Unreeling jumbo roll stand | Wallboard type, 3stands |
| Way of feeding paper | Pneumatic cylinder |
| Air supply | Pressure ≥0.6Mpa |
| Power | 7.5+0.75+0.05kw 3phrasa, 380V, 50HZ(can be customized according to local electricity) |
