> Paper tube core machine

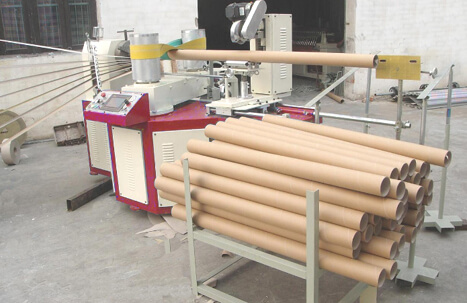

This machine can make the paper core from fluting paper roll .the paper roll have been cut into with small width .this machine can coat glue on paper and rotate it into paper core.


1.Using computer PLC and frequency control system,low noise; 2.Saving power, it can save 50% electricity than ordinary electromagnetic speed adjustment; 3.Locating by infrared ray, automatic cutting; 4.Double blade,single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily; 5.Automatic Gluing, easy operate; 6. The digital control panel set various operating function,can set arbitrary workings on the machine;

Technical Parameter
Operate worker 1--2 people
Paper layer 3--12 layers(can be adjustable)
Wall thickness 1--8mm(can be adjustable)
Roller diameter 12--125mm(can be changed)
Roller speed 1--18m/min
Length of paper core can be adjustable
Speed control Frequency conversion + PLC
Host power 5.5kw
Auxiliary power 0.75kw
Gluing way Single side gluing + double side gluing
Fixed-length way Single infrared ray+positioning baffle
Winding head double head single belt decoration
Cutting way synchronous tracking, single knife cutting
