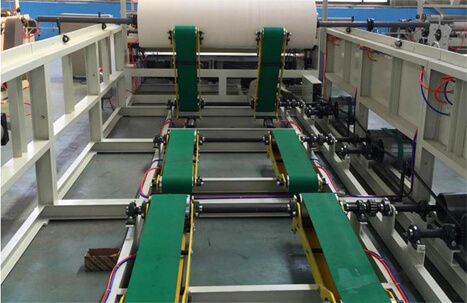

Toilet Paper Rewinding Machine

This toilet paper rewinding machine can rewind jumbo toilet paper roll into various small diameters without changing its width. This rewinding machine has perforating unit, embossing unit and 1-3 jumbo roll unwinding stands, electricity control, glue tank and air compressor. The output paper roll is ready for cutter. This equipment can process raw paper of 1.2m, 1.75m, 1.95m, 2.15m, 2.35m, 2.55m, 2.75m etc in width.


Bandsaw Cutting Machine

Band-saw Paper cutting machine can cut tissue roll(which is rewinded into desired diameter) into different length. Which is an important paper process machine


Contact Us:

Whatsapp/Mobile: 0086-13937183852

Email: andy@xingtumachine.com


Features

1.automatically change jumbo roll;

2.trimming paper precisely;

3.automatically spray glue;

4.automatically perforating;

5.automatically embossing;

6.easy to operate and maintain;

7.low noisy;

Technical Parameter
Machine Model 1092 1575 2000 2200 2400 2600 2800
Width of material jumbo roll (mm) 1200 1800 2000 2200 2400 2600 2800
Finished Products Diameter Φ80~120mm (Tightness can be adjustable)
Finished Products Inner core Diameter Φ32~60 mm
Material Jumbo roll diameter (mm) Φ1200 (Other sizes please point out)
Jumbo Roll Inner core Diameter Φ76.2 mm(other sizes please point out)
Perforation distance (mm) 4 blade,90~160mm; 2 blade,180~320mm;
Production speed 160-200 m/minute
Operation System Touching-screen Multi-menu Man-machine Interface Operation System
Controller PLC program
Mechanical driving Driven by stepless regulator to guarantee the precise length of final products.
Air compressed system 3HP air compressor, minimum pressure: 0.5Mpa
Power 4kw-10kw (380V 50Hz)
optional items
Embossment Single embossment, Double embossment, Edge embossment
Embossing system 3 options: Paper roller to steel roller, rubber roller to steel roller, steel roller to steel roller
Jumbo roll stander 1-3 plies
Rewinding unit Core or coreless
Other special request for machine is welcome
