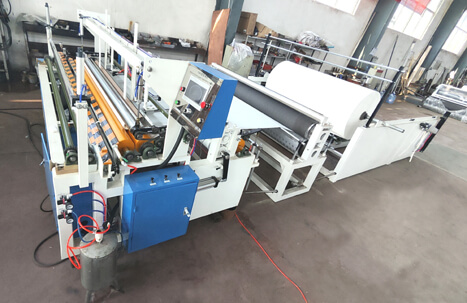

The toilet paper machine is used to produce small toilet tissue paper rolls from jumbo roll paper. The complete toilet paper production line mainly inlcudes four parts: jumbo roll toilet paper rewinding machine, automatic toilet paper roll bandsaw cutter, automatic toilet paper roll packing machine and air compressor system.
If you need more information of this toilet paper making machine, please contact us or send us inquiry!
Whatsapp/Mobile: 0086-13937183852
Email: andy@xingtumachine.com
1. Pneumatic loading jumbo toilet paper rolls.
2. Point to point embossing, patterns are clear and beautiful.
3. Perforating function enable people to tear the paper easily.
4. PLC control and HMI operation panel, simple to operate.
5. All the necessary equipment and spare parts will be included, like glue tank and air compressor.
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of material jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Finished Products Diameter | Φ80~120mm (Tightness can be adjustable) | ||||||
| Finished Products Inner core Diameter | Φ32~60 mm | ||||||
| Material Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner core Diameter | Φ76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Operation System | Touching-screen Multi-menu Man-machine Interface Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | Driven by stepless regulator to guarantee the precise length of final products. | ||||||
| Air compressed system | 3HP air compressor, minimum pressure: 0.5Mpa | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| optional items | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossing system | 3 options: Paper roller to steel roller, rubber roller to steel roller, steel roller to steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
