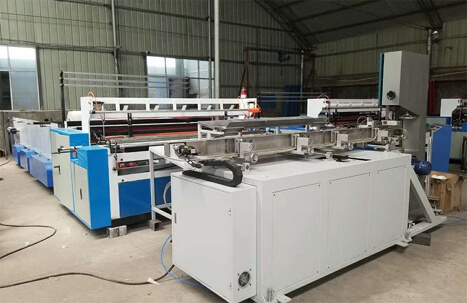

The full automatic 2880mm model toilet paper roll processing line includes toilet paper rewinding machine, automatic bandsaw cutter and automatic toilet paper packing machine. This toilet tissue paper production line is used to make well packed small toilet tissue roll from jumbo parent paper roll.
1.automatically change jumbo roll;
2.trimming paper precisely;
3.automatically spray glue;
4.automatically perforating;
5.automatically embossing;
6.easy to operate and maintain;
7.low noisy;
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 3000 |
| Finished Toilet Roll Diameter | 80~120mm (Tightness can be adjustable) | ||||||
| Finished Toilet Roll Inner Diameter | 32~60 mm | ||||||
| Jumbo roll diameter (mm) | 1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner Diameter | 76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Parameter set | Touching-screen HMI Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | AC frequency converter, stepless speed regulation | ||||||
| Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| Chosen items (Should be ordered separately) | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossment down roller | Rubber roller, steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
