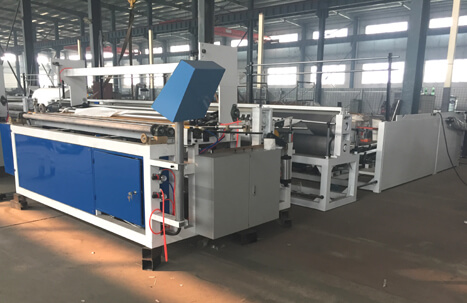

This toilet paper manufacturing machine is used to make small bathroom toilet paper rolls from jumbo roll tissue paper. It mainly has four parts: jumbo roll unwinding stands, embossing part, perforating part and rewinding part. It is fully automaticly embossing, perforating and rewinding toilet paper rolls. The embossing roller can be customized and the roller patterns can be designed by customers. The toilet paper rewinder adopts AC frequency conversion speed regulator and HIM operation system, which is highly efficient and very easy to operate.
If you need more information about the toilet paper roll manufacturing machine, please contact us or send us inquiry!
Whatsapp/Mobile: 0086-13937183852
Email: andy@xingtumachine.com
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 3000 |
| Finished Toilet Roll Diameter | 80~120mm (Tightness can be adjustable) | ||||||
| Finished Toilet Roll Inner Diameter | 32~60 mm | ||||||
| Jumbo roll diameter (mm) | 1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner Diameter | 76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Parameter set | Touching-screen HMI Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | AC frequency converter, stepless speed regulation | ||||||
| Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| Chosen items (Should be ordered separately) | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossment down roller | Rubber roller, steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
