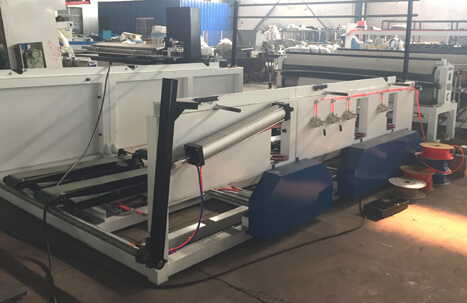

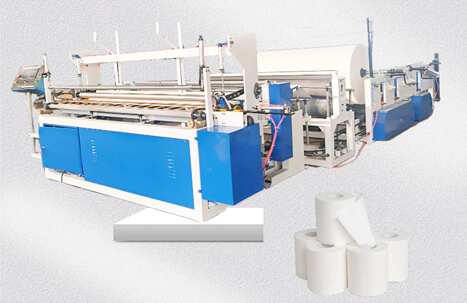

This toilet paper mainly has three parts: unwinding stands, embossing units and machine head. It is fully automaticly embossing, perforating, rewinding and cutting toilet paper roll. The embossing roller can be customized and the roller patterns can be designed by customers. The toilet paper rewinder adopts AC frequency conversion speed regulator and HIM operation system, which is high efficient and very easy to operation.
1.automatically change jumbo roll; 2.trimming paper precisely; 3.automatically spray glue; 4.automatically perforating; 5.automatically embossing; 6.easy to operate and maintain; 7.low noisy;
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of material jumbo roll (mm) | 1200 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Finished Products Diameter | Φ80~120mm (Tightness can be adjustable) | ||||||
| Finished Products Inner core Diameter | Φ32~60 mm | ||||||
| Material Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) | ||||||
| Jumbo Roll Inner core Diameter | Φ76.2 mm(other sizes please point out) | ||||||
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; | ||||||
| Production speed | 160-200 m/minute | ||||||
| Operation System | Touching-screen Multi-menu Man-machine Interface Operation System | ||||||
| Controller | PLC program | ||||||
| Mechanical driving | Driven by stepless regulator to guarantee the precise length of final products. | ||||||
| Air compressed system | 3HP air compressor, minimum pressure: 0.5Mpa | ||||||
| Power | 4kw-10kw (380V 50Hz) | ||||||
| optional items | |||||||
| Embossment | Single embossment, Double embossment, Edge embossment | ||||||
| Embossing system | 3 options: Paper roller to steel roller, rubber roller to steel roller, steel roller to steel roller | ||||||
| Jumbo roll stander | 1-3 plies | ||||||
| Rewinding unit | Core or coreless | ||||||
| Other special request for machine is welcome | |||||||
