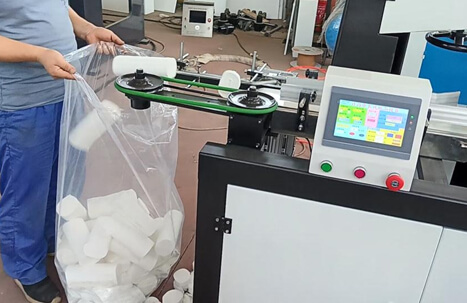

Band-saw Paper cutting machine can automatically cut toilet tissue roll(which is rewinded into desired diameter) into different length. Which is an important paper process machine.
The equipment is controlled by PLC program, touch screen human﹣ computer interface. The precise servo controls feed length. electromechanical integration control and other international advanced technology can automatically detect each key action. It also has good fault information prompt system, make the whole production line achieve the best working state.
(1)easy to operate and maintain;
(2)low noisy;
(3)power saving;
(4)cutting paper neatly;
(5)automatic blade sharper;
Whatsapp/Mobile: 0086-13937183852
Email: andy@xingtumachine.com
| Cutting length | ≦250mm |
| Cutting diameter | 60-130mm |
| Log length | ≦2000mm and ≦3000mm |
| Cutting speed | 80～100cuts/min |
| Cutting log channel | single channel |
| Cutting blade | band saw blade |
| Cutting blade size | 3750x60x0.6mm |
| Tolerance | ±1mm |
| Power supply | 5kw, 3phase, 380V, 50HZ |
| Machine weight | 1000KG |
